Single Phase System
Single Phase System
Single phase monoblock /open well submersible pump controller for overhead tank (Model: USAS-OH-I)
TECHNICAL SPECIFICATION:-
• Power on indication
• Low & High level indication for OH tank
• Operating voltage: 230V 50Hz AC
• Control voltage: 12V DC
• Powder coated electric pannel
• Size: 8 x 5.1 x 2.4 inch
• Weight: 1.4 Kg
FEATURES:-
• Continuously monitors the water level in Overhead tank
• Auto On/Off the pump
• Conventional switch to turn ON/OFF the pump manually
• No more OVERFLOW

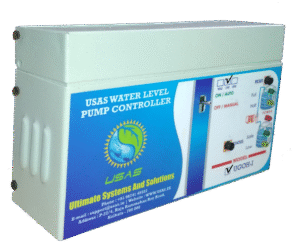

Single phase monoblock /open well submersible pump controller for overhead and underground tank (Model: USAS-UGOH-I)
TECHNICAL SPECIFICATION:-
• Power on indication
• Low & High level indication for OH tank
• Low & safe level indication for UG tank
• Operating voltage: 230V 50Hz AC
• Control voltage: 12V DC
• Powder coated electric pannel
• Size: 8 x 5.1 x 2.4 inch
• Weight: 1.4 Kg
FEATURES:-
• Continuously monitors the water level in Overhead tank as well as Underground tank
• Auto On/Off the pump
• Conventional switch to turn ON/OFF the pump manually
• No more OVERFLOW & no more DRY-RUN

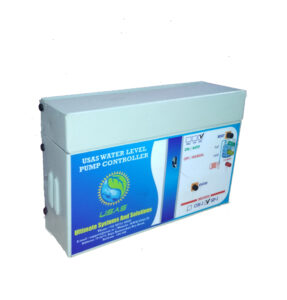

Single phase borewell submersible pump controller for overhead tank (Model: USAS-SP-I)
TECHNICAL SPECIFICATION:-
• Power on indication
• Low & High level indication for OH tank
• Operating voltage: 230V 50Hz AC
• Control voltage: 12V DC
• Powder coated electric pannel.
• Size: 8 x 5.1 x 2.4 inch
• Weight: 1.5 Kg
FEATURES:-
• Continuously monitors the water level in Overhead tank
• Auto On/Off the pump
• Conventional switch to turn ON/OFF the pump manually
• No more OVERFLOW
